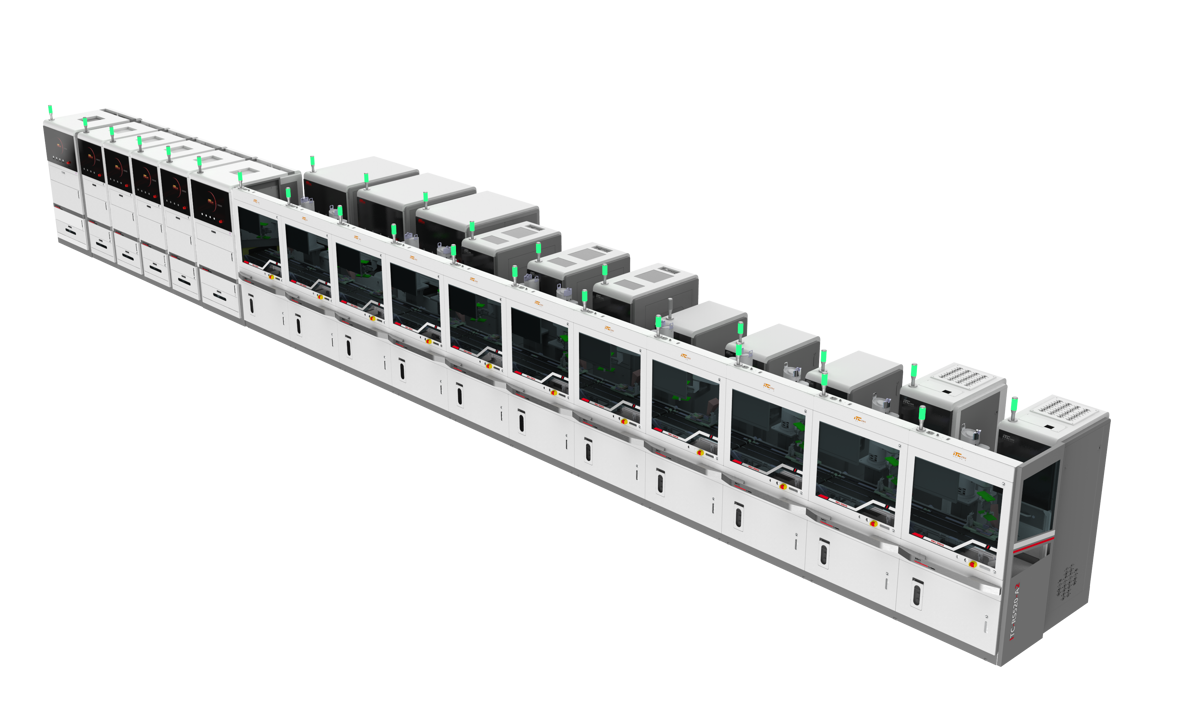

ITC‑ML11101 Terminal Flexible Automatic Inspection Line, Whole‑Machine Test Section

ITC‑ML11101 Terminal Flexible Automatic Inspection Line, Whole‑Machine Test Section

The ITC Terminal Flexible Automatic Inspection Line is specially designed for functional testing of consumer electronic terminals such as smartphones and tablets. Adopting a standardized modular design, the production line integrates acoustic testing, sensor testing, display screen testing, camera imaging testing, radio frequency (RF) testing and other functions, enabling one-stop full-item automatic testing for electronic terminal products. Developed based on our company’s years of experience in the precision inspection industry, the line consists of modular manipulators and standardized test units. It can be flexibly combined and expanded according to customer production capacity, product iteration and personalized test requirements, greatly improving inspection efficiency and production line flexibility. Breaking the design limitations of traditional fixed inspection lines, this solution features high innovation, superior flexibility and high cost performance, serving as an intelligent inspection solution for flexible production and high-efficiency quality inspection in the consumer electronics industry.

Product Overview

1. Modular Test Design with Customizable Functions Adopting a fully modular architecture, the system supports flexible combination of multiple test units including acoustics, sensors, display screens, cameras and RF modules. The test procedure can be quickly configured to match different product test requirements, covering diverse electronic terminal inspection scenarios. 2. Dual Application Modes for Flexible Deployment All test devices support both standalone operation and inline integrated operation. They can be used for single-station sampling and R&D self-testing, or work in full-line linkage for mass production testing, adapting to various production and inspection scenarios. 3. High-Speed Production with High UPH Equipped with high-efficiency test scheduling logic, the line features fast test rhythm and large throughput. The maximum production capacity reaches 1200 UPH, fully meeting high-volume and high-tempo industrial mass production quality inspection requirements. 4. Fully Unmanned and Highly Automated The entire process including testing, result judgment, data uploading and retest closed-loop is 100% automatically operated without manual intervention. It effectively reduces labor costs, eliminates human errors and ensures consistent and stable test results. 5. Fixture-Free Flexible Design for Fast Model Switching Featuring an innovative fixture-free structure, the line delivers superior product compatibility. No custom jigs or fixtures are required when switching product models. It greatly shortens line changeover time and significantly improves production flexibility and versatility.

Technical Specifications

Parameter Item	Parameter Value
UPH	600, max. support 1200
CT	5s
Main Process	1. RF Test: Multi‑standard antenna coupling test for 2G/3G/4G/5G/Wi‑Fi/BT/GPS, 5G multi‑frequency parallel test; 2. Audio Test: Acoustic quality test for microphone, speaker, earphone, vibration, ultrasonic, etc.; 3. Sensor Function Test: Key test, screen display test, Hall‑sensor test, ambient light sensor, proximity sensor, screen backlight, under‑display fingerprint, side fingerprint, NFC, accelerometer‑gyroscope, PD charging, wired earphone, Wi‑Fi, Bluetooth test, etc.; 4. Camera Test: Full‑item automatic detection for telephoto, close‑up, wide‑angle, macro cameras; 5. Screen Test: Bright spot / dark spot / Mura defect inspection; high‑precision measurement of chromaticity consistency and brightness uniformity with ITC colorimeter;
